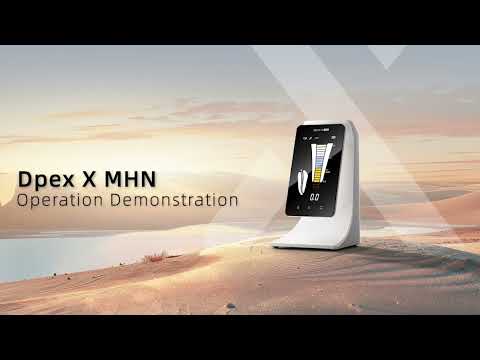

The Expert Locator !
The D-PEX X MHN combines cutting-edge technology with practicality to deliver ever more reliable and precise measurements.
2 Modes: Root Canal Orifice finder and Apex Locator
Root Canal Orifice Finder (MHN Mode)
- Effective even on the most calcified canals!
- Also locates the pulp chamber.
This mode revolutionizes the process of locating heavily calcified root canals, surpassing the limitations of traditional techniques. It supports two key applications during root canal treatment:
A/ Pulp chamber localization during access cavity preparation : minimizes excessive dentin removal and prevents damage to the pulp chamber floor.
How it works:
1- Prepare the access cavity.
2- Isolate and dry the tooth.
3- Attach the lip hook to the patient and connect the clip to an endodontic explorer.
4- Place the explorer tip at the estimated center of the pulp chamber and check:
0.00–1.00: No connection, remove more dentin.
2.00–3.00: Connection detected, cautiously remove dentin.
Above 3.00: Pulp chamber located, safely enlarge access.
B/ Locating heavily calcified root canal orifices : often difficult to visualize with conventional methods.
How it works:
1- Clean the pulp chamber.
2- Attach the lip hook and clip to an endodontic explorer.
3- Dry the pulp floor.
4- Position the explorer near the estimated orifice and check:
0.00–1.00: No connection, remove more dentin or explore other areas.
2.00–3.00: Probable orifice, expose canal by removing dentin.
Above 3.00: Orifice confirmed, insert a manual file and estimate working length.
Apex Locator
- Features a new electronic circuit to minimize interference
- Auto-calibration at startup
- Accelerated data processing for ultra-precise measurements in all conditions
- Clear display even in the presence of pulp or blood
Key Features :
Adjustable screen angle for optimal viewing
Large 3.8-inch touch screen
Adjustable sound notifications
Sleep mode with three durations (10/20/30 minutes)
Lightweight at just 390 g
Pro Tip: By connecting the Endo Pace motor to the D-PEX X MHN, you can continuously monitor the distance to the apex.
Technical data :
Operating time: 7 hours
Charging time : 3 hours
Battery : 3.7V / 2000mAh
Dimensions : 105x95x150mm
Weight : 390g
Included :
D-Pex x MHN x1
Measuring wire x1
File clip x4
Lip hook x5
Apex locator probe x2
Adapter x1
Tester x1
