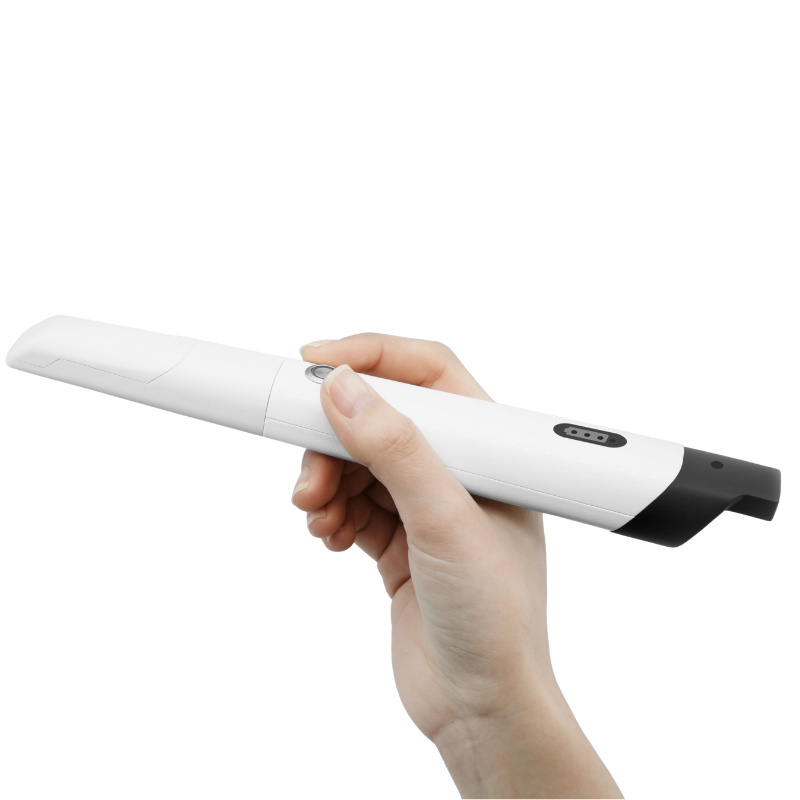

Panda Free - Wireless Scan Intraoral

Clinical Indications

The PANDA FREE can be used to capture digital impressions for a wide range of clinical applications:

• Crowns
• Bridges
• Veneers
• Inlays / Onlays
• Implant impressions with scan bodies
• Clear aligners
• Occlusal splints
• Removable prostheses
• Occlusal registrations
• Orthodontics

With an 18 × 16 mm scan field and a 0–20 mm depth of field, the scanner provides easy access to difficult areas while capturing the anatomical details required for the design of restorations and dental appliances.

Key Benefits

• Complete wireless freedom: the millimeter-wave technology provides fast and stable data transmission, without the constraints of a cable during scanning.

• Dynamic Staring 3D technology: combines scanning speed and accuracy to deliver reliable digital impressions, with accuracy ≤ 7 μm and precision ≤ 5 μm.

• Ultra-lightweight: weighing just 178 g, the PANDA FREE provides a comfortable grip and facilitates access to posterior areas.

• 3.5-hour battery life: up to 3.5 hours of continuous scanning, allowing multiple scans without cable constraints.

• Fast scanning in under 2 minutes: its 18 × 16 mm scan field and high acquisition speed allow a full arch to be scanned in less than 2 minutes.

• Simplified control: its multifunction button and motion-sensing technology allow certain scanner functions to be controlled without using a mouse, providing a smoother and more hygienic workflow.

• Fast scanning in under one minute: Thanks to its large 18 × 16 mm scan field and high acquisition speed, a full arch can be scanned in 30sec to one minute, improving workflow efficiency and patient comfort.

• 2D Image Capture and Storage: capture images directly with the scanner's camera and store them with the patient's digital case file.

• Model Base Creation: automatically add a base to your digital model to create a file ready for 3D printing.

• Lab Case Reports: easily prepare and share case information with your laboratory to streamline communication and the digital workflow.

• A technology that captures more 3D data with each image
  Our “coded structured light” technology can generate a complete 3D data frame from each captured image. By contrast, most scanners using “sequential structured light” need to capture multiple consecutive images to generate a single complete 3D data frame.

This is an important factor to consider when comparing frame rates. Frame rate, expressed in FPS (frames per second), refers to the number of images captured per second. The PANDA Smart offers four modes:

• • • 15 FPS: ideal for beginners and helps limit the number of images captured and the resulting data volume.
    • 18 FPS: suitable for everyday use.
    • 24 FPS: recommended for experienced users who want fast and smooth scanning.
    • 30 FPS: for even faster and smoother scanning.

With the PANDA Smart, each captured image generates a 3D data frame. For example, if a 120 FPS scanner requires 5 images to generate a single 3D frame, its actual 3D data generation rate is 120 ÷ 5 = 24 3D frames per second. In this configuration, the PANDA Smart’s 24 FPS can therefore be considered comparable to 120 FPS in terms of 3D data generation rate.

Intraoral Scanner Specifications

• Accuracy: ≤ 7 μm
• Precision: ≤ 5 μm
• Weight: 178 g
• Dimensions: 241 × 30 × 28 mm
• Scan Field: 18 × 16 mm
• Depth of Field: 0–20 mm
• Light Source: White LED + laser
• Connection: Wireless – millimeter wave
• Base Connection: USB 3.0
• Continuous Scanning Time: 3.5 h
• Tips: 6 autoclavable tips
• Multifunction Button & Motion Sensing
• Output Formats: STL / PLY / encrypted PTY

Packaging

Open the case to discover all the included accessories:

• Handpiece (x1)
• Cradle (x1)
• Calibrator (x1)
• USB cable (x1)
• Scanner tips (x6)
• Power adapter (x1)

Recommended Computer Specifications:

For optimal performance, we recommend:

• Operating System: Windows 10 or Windows 11 (64-bit)
• Processor: Intel Core i7-11800H or Intel Core i7-12700H (or higher)
• Memory: 16 GB RAM (32 GB recommended)
• Graphics Card: NVIDIA RTX 2060 or RTX 3060 (or higher)
• Storage: 512 GB SSD minimum
• Display Resolution: Full HD 1920 × 1080 or higher

Software Features:

• AI-powered scanning with automatic removal of unwanted soft tissue data.
• Accurate margin line drawing.
• Occlusion analysis with color mapping.
• Undercut detection for improved restoration planning.
• Scan comparison to monitor clinical changes over time.
• Pre-operative scan to preserve the original tooth morphology.
• Orthodontic treatment simulation.
• Clinical monitoring through model comparison.
• Conventional impression scanning with silicone or alginate surface inversion.
• Digital tooth and space measurement tools.
• Direct export to Exocad for seamless laboratory communication.

Quote Dr Luciano Ferreira - Doctor of Dental Surgery

“As a loyal user of Panda Scanner, PANDA free showcases excellence from every angle. Its compact design and powerful scanning performance will undoubtedly lead the wireless intraoral scanner field. Like its predecessors, it maintains top-tier scan speed and quality. The wireless design simplifies the clinical environment, and the long battery life keeps me focused on my work without worrying about power.”
