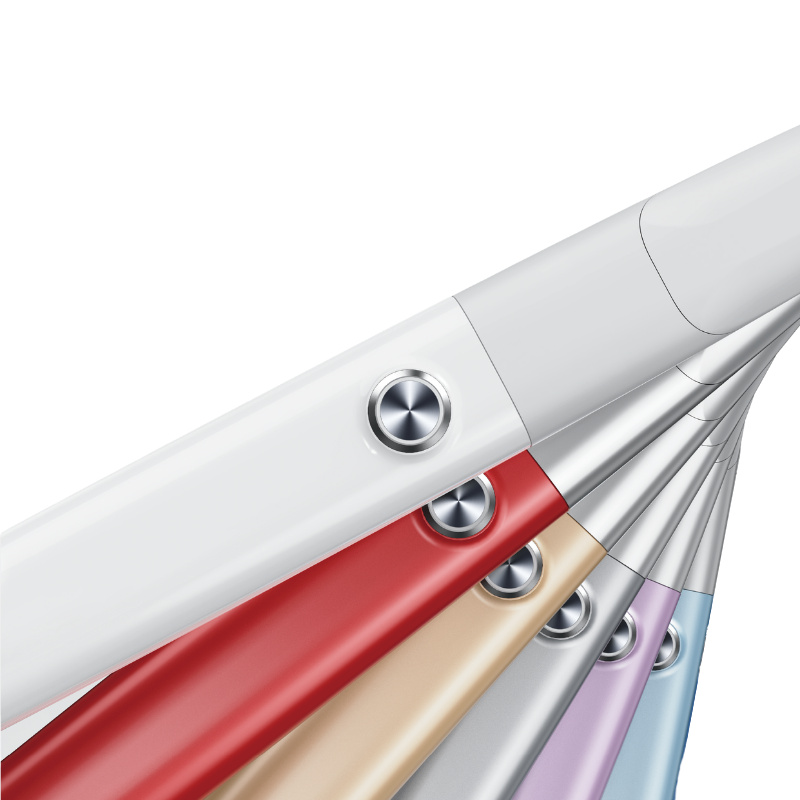

Panda Smart - Scan Intraoral

Clinical Indications:

PANDA SMART captures every anatomical detail with an accuracy of up to 7 μm.

This outstanding scanning performance makes it ideal for:

• Crowns
• Bridges
• Veneers
• Inlays / Onlays
• Implant impressions with scan bodies
• Clear aligners
• Occlusal splints and night guards
• Removable prostheses
• Occlusal registrations
• Even fine preparations and margin lines are accurately reproduced thanks to the integrated margin line drawing tool.

• Intraoral Scanner Specifications:
• Accuracy: ≤ 7 μm
• Precision (Repeatability): ≤ 5 μm
• Weight: 138 g (192 g with cable)
• Dimensions: 221 × 27 × 25 mm
• Scan Field: 18 × 16 mm
• Scan Depth: 0–20 mm
• Color Imaging: Full HD True Color
• Connection: USB 3.0
• Cable Length: 1.85 m
• Anti-Fog System: Intelligent Heating
• Tips: 6 autoclavable tips
• Autoclave Cycles: 50–100
• Output Formats: STL / PLY / PTY

Key Benefits:

• AI-powered scanning that simplifies every digital impression:
  • Automatically identifies hard and soft tissues
  • Removes unwanted scan data
  • Locks already captured areas
  • Allows rescanning only of missing region
  • The result is faster learning, fewer errors, and more reliable digital impressions.
• Ultra-lightweight design: At just 138 g, the PANDA SMART is one of the lightest intraoral scanners in its class.
• Its compact design:
  • Improves handling comfort
  • Reduces fatigue during full-arch scans
  • Provides easier access to posterior areas
• Fast scanning in under one minute: Thanks to its large 18 × 16 mm scan field and high acquisition speed, a full arch can be scanned in approximately one minute, improving workflow efficiency and patient comfort.
• True Full HD color imaging: Realistic color reproduction clearly differentiates:
  • Soft tissue
  • Teeth
  • Restorations
  • Tooth preparations
  • Preparation margins
  • High-definition anatomical details facilitate communication with both the dental laboratory and the patient.

• Reliable USB connectivity provides:
  • Stable data transmission
  • No battery charging required
  • No risk of power interruption during scanning
  • Simple Plug & Play installation
  • A single USB cable is all you need to connect the scanner to your computer.

Recommended Computer Specifications:

For optimal performance, we recommend:

• Operating System: Windows 10 or Windows 11 (64-bit)
• Processor: Intel Core i7-11800H or Intel Core i7-12700H (or higher)
• Memory: 16 GB RAM (32 GB recommended)
• Graphics Card: NVIDIA RTX 2060 or RTX 3060 (or higher)
• Storage: 512 GB SSD minimum
• Display Resolution: Full HD 1920 × 1080 or higher

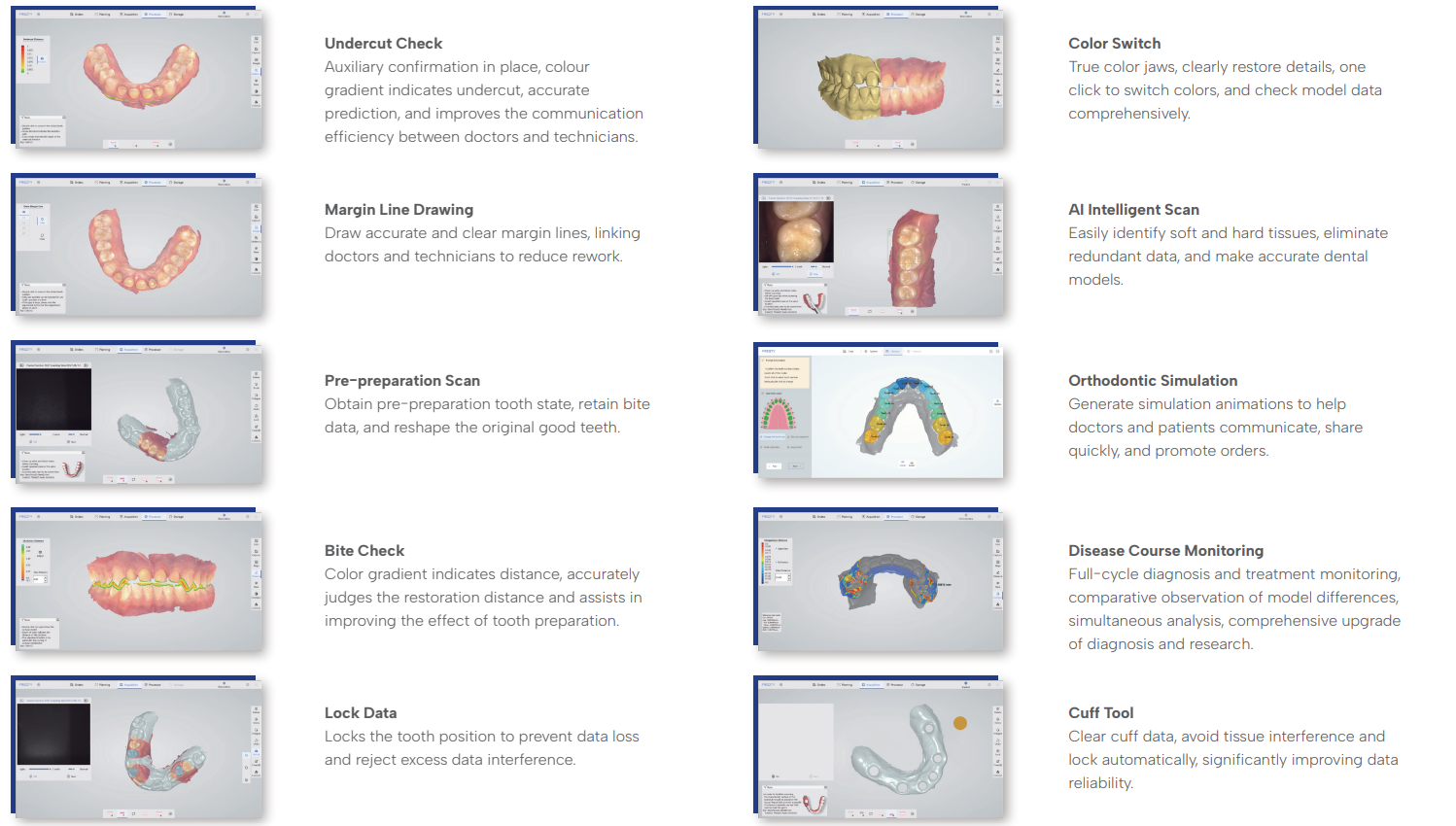

Software Features:

• AI-powered scanning with automatic removal of unwanted soft tissue data.
• Accurate margin line drawing.
• Occlusion analysis with color mapping.
• Undercut detection for improved restoration planning.
• Scan comparison to monitor clinical changes over time.
• Pre-operative scan to preserve the original tooth morphology.
• Orthodontic treatment simulation.
• Clinical monitoring through model comparison.
• Conventional impression scanning with silicone or alginate surface inversion.
• Digital tooth and space measurement tools.
• Direct export to Exocad for seamless laboratory communication.
